Fortune 500 Smart Factory Case
Discover how Linkvisu's enterprise-grade E-ink solutions empower leading factories to achieve 100% paperless workflows, eliminate WIP bottlenecks, and drive sustainable Industry 4.0 transformations.
Paperless Electronic MO Ticket System for PCBA Workshops
Deployed in Fortune 500 Electrical WPF Workshops and Midea Group facilities.
The Challenge
Traditional PCBA workshops often face severe visibility blind spots across SMT, Wave soldering, and Coating processes. A high reliance on manual tracking for mixed Work-in-Process (WIP) inevitably leads to unquantifiable delivery times, frequent manual errors, and dynamic production bottlenecks.
The Linkvisu Solution

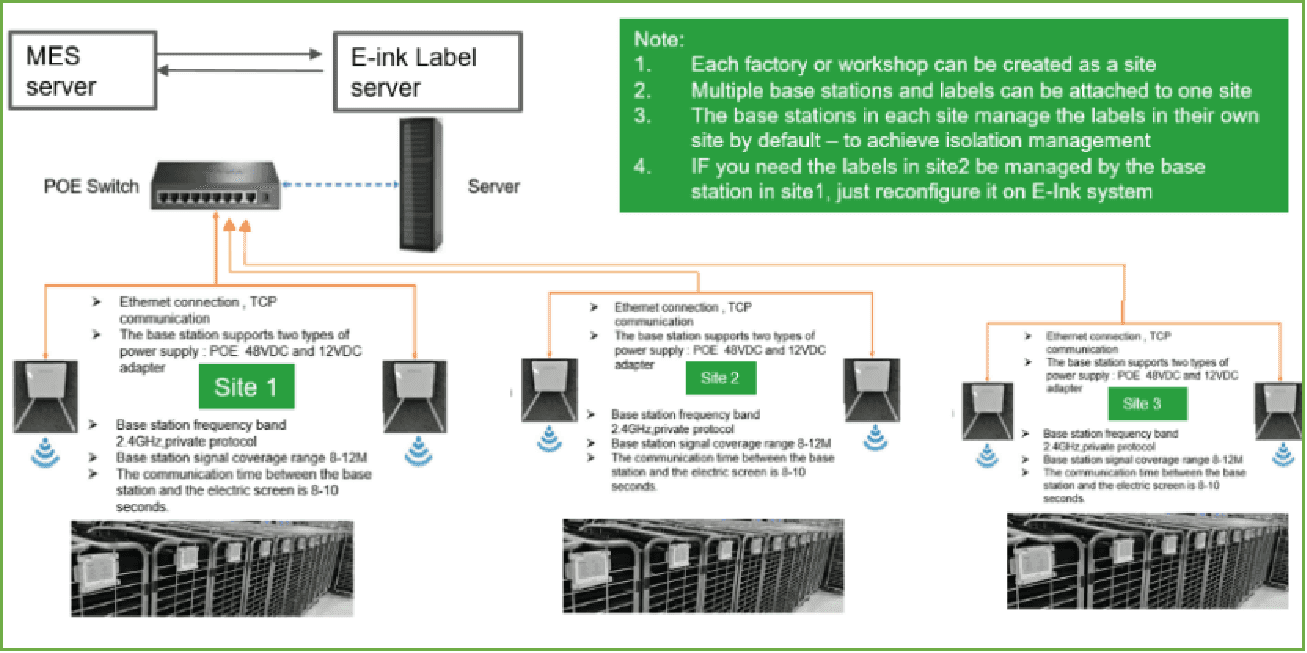

To regain control over the entire production link, we deployed an ultra-low-power E-ink display system tightly integrated with the factory's MES, entirely replacing traditional paper MO tickets. Production tasks and QA results (Pass/Fail) are synced to the labels in real-time. Furthermore, the system features advanced Pick-to-Light (PTL) visual guidance—utilizing colored LED flashes and a 50cm light beam—to direct operators instantly during WIP retrieval, ensuring a 100% paperless and error-free material flow.
Project Outcomes
Measurable impact delivered to the PCBA shop floor.
Steadily improved the On-Time Delivery (OTD) rate for PCBA and sub-stations.
Completely eliminated manual data entry mistakes and picking errors through real-time MES synchronization and PTL visual guidance.
Frequently Asked Questions
Common inquiries regarding our PCBA paperless deployments.
Will the E-ink screen refresh delay affect our high-speed SMT production line?
No. Our industrial-grade E-ink labels are optimized for second rapid awakening and syncing. Information is preemptively pushed by the MES, ensuring zero waiting time for operators.
Are the labels safe to use in ESD-sensitive areas like PCBA workshops?
Yes. Our specific models feature industrial-grade anti-static (ESD) casing, entirely eliminating the risk of static discharge damaging your sensitive electronic components during WIP flow.
What happens to the label display if the Wi-Fi or factory network goes down?
Thanks to the bi-stable nature of E-ink technology, the last updated production data remains permanently visible on the screen even during a complete power or network outage, preventing production chaos.
